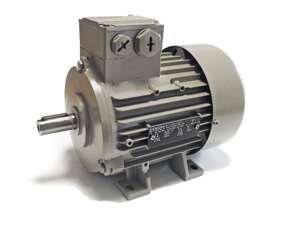

Electrics motors SIEMENS series 1LA7
13 items
Three-phase asynchronous low-voltage motors with aluminium housing series 1LA7 with frame size 56 - 160 mm.
Overview:
Frame size: 63M - 160L
Power range: 0,09 - 18,5 kW
Number of poles: 2, 4, 6, 8
Efficiency classes: IE1
Rated frequency and voltage up to 3 kW: 230VD / 400VY, 50Hz // 460VY, 60Hz
Rated frequency and voltage from 3kW: 400VD / 690VY, 50Hz // 460VD, 60Hz
Frequency: 50 / 60 Hz
Degree of protection: IP 55
Housing: Aluminium
Type of constructions: IM B3, IM B5, IM B35, IM B34, IM B14, IM B14S
- Ambient temperature from -20°C to + 40°C
- Insulation class F
- Installation altitude up to 1000 m
- Operating mode continuous duty S1
- Standard paint finish, color RAL 7030
-
Electric motor 1LA7060-2AA10
Electric motor 1LA7060-2AA10, 0,18kW, 3000ot/min, 230/400V, 50Hz, B3
Warehouse number: 1LA7060-2AA10
Availability: Sale Out / Replacement
-
Electric motor 1LA7060-4AB10
Electric motor 1LA7060-4AB10, 0,12kW, 1500ot/min, 230/400V, 50Hz, B3
Warehouse number: 1LA7060-4AB10
Availability: Sale Out / Replacement
-
Electric motor 1LA7063-2AA10
Electric motor 1LA7063-2AA10, 0,25kW, 3000ot/min, 230/400V, 50Hz, B3
Warehouse number: 1LA7063-2AA10
Availability: Sale Out / Replacement
-
Electric motor 1LA7063-4AB10
Electric motor 1LA7063-4AB10, 0,18kW, 1500ot/min, 230/400V, 50Hz, B3
Warehouse number: 1LA7063-4AB10
Availability: Sale Out / Replacement
-
Electric motor 1LA7063-6AB10
Electric motor 1LA7063-6AB10, 0,09kW, 1000ot/min, 230/400V, 50Hz, B3
Warehouse number: 1LA7063-6AB10
Availability: Sale Out / Replacement
-
Electric motor 1LA7070-2AA10
Electric motor 1LA7070-2AA10, 0,37kW, 3000ot/min, 230/400V, 50Hz, B3
Warehouse number: 1LA7070-2AA10
Availability: Sale Out / Replacement
-
Electric motor 1LA7070-4AB10
Electric motor 1LA7070-4AB10, 0,25kW, 1500ot/min, 230/400V, 50Hz, B3
Warehouse number: 1LA7070-4AB10
Availability: Sale Out / Replacement
-
Electric motor 1LA7070-6AA10
Electric motor 1LA7070-6AA10, 0,18kW, 1000ot/min, 230/400V, 50Hz, B3
Warehouse number: 1LA7070-6AA10
Availability: Sale Out / Replacement
-
Electric motor 1LA7070-8AB10
Electric motor 1LA7070-8AB10, 0,09kW, 750ot/min, 230/400V, 50Hz, B3
Warehouse number: 1LA7070-8AB10
Availability: Sale Out / Replacement
-
Electric motor 1LA7073-2AA10
Electric motor 1LA7073-2AA10, 0,55kW, 3000ot/min, 230/400V, 50Hz, B3
Warehouse number: 1LA7073-2AA10
Availability: Sale Out / Replacement
-
Electric motor 1LA7073-4AB10
Electric motor 1LA7073-4AB10, 0,37kW, 1500ot/min, 230/400V, 50Hz, B3
Warehouse number: 1LA7073-4AB10
Availability: Sale Out / Replacement
-
Electric motor 1LA7073-6AA10
Electric motor 1LA7073-6AA10, 0,25kW, 1000ot/min, 230/400V, 50Hz, B3
Warehouse number: 1LA7073-6AA10
Availability: Sale Out / Replacement
-
Electric motor 1LA7073-8AB10
Electric motor 1LA7073-8AB10, 0,12kW, 750ot/min, 230/400V, 50Hz, B3
Warehouse number: 1LA7073-8AB10
Availability: Sale Out / Replacement
